AI Agent Architecture Explained: Components, Patterns & Control Plane

Most guides on AI agent architecture draw the same box diagram, a brain, some memory, a few tools, and stop there. That is the architecture of a demo. It is not the architecture of a system you can trust to act on your behalf in production.

The gap matters. Gartner projects that over 40% of agentic AI projects will be canceled by the end of 2027, citing escalating costs, unclear value, and inadequate risk controls. The agents that get scrapped are rarely the ones with a bad reasoning loop. They are the ones with no control plane around it.

This guide covers both halves. First, the reasoning loop every AI agent architecture shares: perception, reasoning, memory, tools, and orchestration. Then the layer most explainers skip: the production control plane that decides whether an action is allowed to run, and lets a human watch and approve the ones that matter.

In a hurry? Spin up an agent you can watch work, free.

What is AI agent architecture?

AI agent architecture is the structural blueprint for how an autonomous system perceives its environment, reasons about a goal, selects and uses tools to act, remembers what happened, and repeats the cycle until the task is done. Unlike a fixed script, an agent decides its own next step at runtime, which is exactly why its architecture needs both a reasoning core and a control layer.

That one sentence hides the whole story. A traditional program follows a path a developer wrote in advance. An agent architecture is built so the path can be decided by the model, step by step, based on what it observes. That flexibility is the point, and it is also the risk.

AI agent architecture vs traditional automation

This is where most confusion starts, so let us settle it early.

A Zapier zap is a static flowchart. Every branch exists because someone drew it. If reality does not match the diagram, the automation stalls. An agent, by contrast, reasons about the situation and picks a path the designer never explicitly wrote. That is a different class of system, not a fancier zap. If your problem genuinely fits a flowchart, use a flowchart. For the messy rest, you need an architecture that can think. We go deeper on the boundary in our guide to how an AI agent differs from a chatbot.

The core components of an AI agent architecture

Nearly every serious agent architecture, whatever the framework, is built from the same five components. Learn these and you can read any agent diagram.

Perception and input layer

The entry point. It turns raw signals into something the model can reason about: a user message, an inbound email, a webhook, a scheduled trigger, a row change in a database. A robust perception layer normalizes messy inputs into structured context so the reasoning engine starts from clean ground truth.

Reasoning engine

The core, usually a large language model. This is where planning, goal decomposition, tool selection, and reflection happen. Given the current context, the reasoning engine decides what to do next: call a tool, ask a human, or finish. The quality of this component sets the ceiling on everything else, but on its own it is just a very capable text predictor. It needs the other four components to actually do anything.

Memory

Agents need two kinds of memory. Short-term (working) memory holds the current task context, the recent steps, and intermediate results. Long-term memory, often a vector store, persists knowledge across sessions so the agent can recall past decisions and learned facts. Without memory, an agent restarts from zero every step and cannot maintain a coherent plan. The design choice here is what to keep, and for how long.

Tools and action layer

Tools are how an agent affects the world: calling an API, running code, querying a database, sending a message. Modern architectures expose tools through function calling or the Model Context Protocol, an open standard that lets an agent connect to a growing ecosystem of external services through one consistent interface. This is the component that turns a chat model into something that acts, and it is also the component that most needs governance, because actions have consequences.

Orchestration and the control loop

The conductor. Orchestration sequences the other four components: take input, reason, call a tool, observe the result, update memory, decide whether to continue. Everything below about patterns and multi-agent systems is really about how this loop is structured.

Here is how those five components connect in the simplest single-agent architecture:

        ┌─────────────┐
input → │ PERCEPTION  │
        └──────┬──────┘
               ▼
        ┌─────────────┐      ┌──────────┐
        │  REASONING  │◄────►│  MEMORY  │
        │   ENGINE    │      └──────────┘
        └──────┬──────┘
               ▼
        ┌─────────────┐
        │    TOOLS    │ → acts on the world
        └──────┬──────┘
               │  observation
               └───────► back to REASONING (loop)

How the components fit together: the perceive, reason, act loop

The single most important idea in agent architecture is the loop, and it is the idea most box diagrams leave out. An agent does not run its components once, top to bottom. It cycles: perceive, reason, act, observe the result, then reason again with that new information. It keeps looping until the goal is met or a stopping condition kicks in.

This interleaving of reasoning and acting was formalized in the ReAct paper (Yao et al., 2022), which showed that letting a model reason and act in alternating steps beats doing either alone. Reasoning traces help the agent plan and handle exceptions, while actions let it pull in fresh information from the environment instead of hallucinating.

An agent is typically just an LLM using tools based on environmental feedback in a loop. The architecture is simple. Making it trustworthy in production is the hard part.

That loop is exactly what a chatbot lacks. A chatbot answers and stops. An agent acts, checks what happened, and adapts. Which is also why an agent needs guardrails a chatbot never does: a loop that can call real tools can also loop into real trouble.

AI agent architecture patterns

Once you understand the loop, the patterns are variations on how many loops run and how they relate.

Single-agent with tools

One reasoning loop with access to a bounded set of tools. This is the right default. It is easier to debug, cheaper to run, and predictable. Reach for something more complex only when a single agent demonstrably cannot handle the task.

Multi-agent systems

Several specialized agents coordinating on a larger goal. The common shapes are:

• Orchestrator-worker: a manager agent breaks a task into subtasks and delegates them to worker agents, then synthesizes the results.
• Sequential pipeline: each agent handles one stage and passes output to the next.
• Parallel specialists: multiple agents work independently and their outputs are aggregated.

Multi-agent architectures add power and coordination overhead in equal measure. We cover when and how to wire them in our deep dive on AI agent orchestration.

Reactive vs deliberative architectures

A reactive agent maps observations to actions with little internal planning, fast and cheap. A deliberative agent maintains an internal model of the world and plans ahead before acting, slower but better for complex goals. This maps onto the classic taxonomy from Russell and Norvig, simple reflex agents through to goal-based and utility-based agents. Most production agents blend the two.

The temptation is always to reach for more agents and more layers. Anthropic, after building agents with dozens of teams, argues the opposite.

Building Effective AI AgentsDiscover how Anthropic approaches the development of reliable AI agents. Learn about our research on agent capabilities, safety considerations, and technical framework for building trustworthy AI.anthropic.com

Their finding is worth internalizing: the most successful implementations use simple, composable patterns, not complex frameworks. Start with the simplest architecture that works and add complexity only when it demonstrably improves outcomes.

From prototype to production: the layer most architectures miss

Here is the pivot, and it is the reason for that Gartner cancellation number at the top.

Every architecture we just described works in a demo. You give the agent a goal, it loops through its components, it produces a result. The trouble starts when the agent runs unattended, touches real systems, and handles real money or real customer data. The five-component diagram says nothing about what happens when the agent is wrong, when it needs permission, or when you need to prove afterward what it did.

Real production architectures need four cross-cutting layers that the box diagram never shows:

• Human-in-the-loop control: the agent pauses before sensitive actions and waits for a person to approve. This is an architectural checkpoint on the action layer, not a nice-to-have. Our guide to human-in-the-loop AI agents covers the patterns.
• Observability: every step, tool call, token, and decision is traced so you can see what the agent did and why. Without it, debugging an autonomous loop is guesswork. See AI agent observability.
• Security and guardrails: least-privilege tool access, input and output screening, and boundaries on what the agent can reach. More in AI agent security.
• Governance and policy: rules for what is allowed, by whom, and with what audit trail.

These are not add-ons you bolt on later. In a production architecture, they wrap the reasoning loop. Skip them and you get exactly the outcome Gartner is warning about.

The control plane: architecting agents for production

Put those four layers together and you get a distinct architectural component: the control plane. If the reasoning loop is the agent's brain, the control plane is the layer around it that governs whether an action runs, who can see it, and who has to approve it, without you rewriting the agent.

Architecturally, the control plane sits around the loop and gates the action layer:

        ┌──────────────── CONTROL PLANE ────────────────┐
        │  approvals · observability · policy · audit    │
        │   ┌──────────────────────────────────────┐     │
        │   │   PERCEIVE → REASON → ACT → OBSERVE   │     │
        │   └───────────────────┬──────────────────┘     │
        │            gate every real-world action        │
        └────────────────────────┬───────────────────────┘
                                  ▼
                        approved actions only

This is the layer that distinguishes an agent you can trust from a script that happens to use an LLM.

Control plane vs DIY glue code vs orchestration frameworks

It is easy to confuse the control plane with orchestration. They solve different problems.

Orchestration frameworks coordinate how agents talk to each other. A control plane governs whether an action is allowed to run and lets a human see and approve it. You can hand-build a control plane with glue code, a queue, a logging stack, and an approvals UI. Most teams that try end up maintaining more infrastructure than agent.

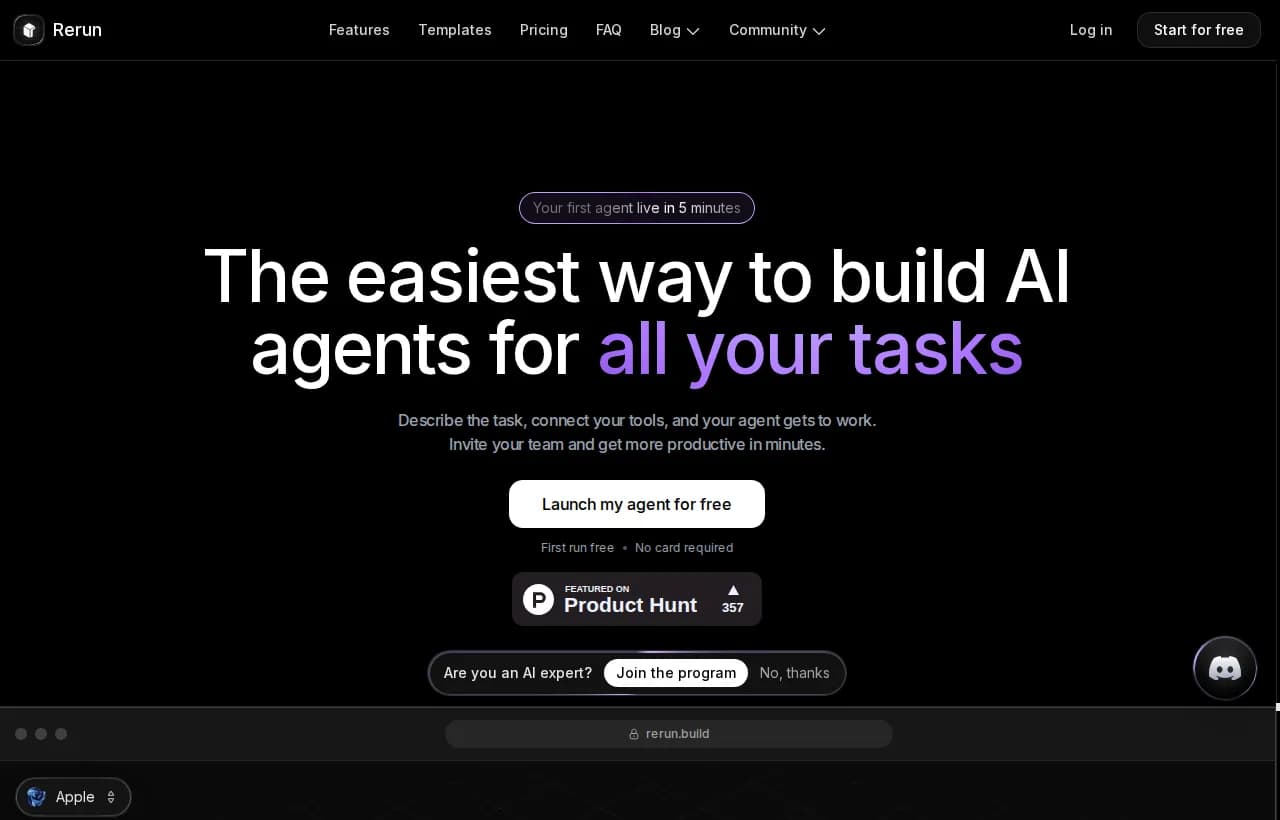

Where Rerun fits

Rerun is the control plane for running AI agents in production. You build an agent by describing the task, connect your tools, and then watch the work happen live on a dashboard anyone can read. Before anything sensitive, a payment, an email to a client, a refund, the agent stops and hands it back to you. You approve from the app or from Slack, and it resumes exactly where it paused.

The point is not a prettier diagram. It is that the observability, approvals, and governance your architecture needs in production come built in, instead of being the six months of plumbing that gets your project canceled. It is not a chatbot, it does the work. It is not Zapier, there are no flowcharts to wire. And it is never a black box, you watch every action.

Here is the kind of brief that becomes a governed, production-ready agent rather than a fragile script:

{
  "goal": "Chase overdue invoices and recover payment",
  "components": {
    "perception": "watch Stripe for failed and overdue charges",
    "reasoning": "decide when and how to follow up per customer",
    "memory": "remember prior contact and payment history",
    "tools": ["stripe", "gmail", "slack"]
  },
  "control_plane": {
    "human_in_the_loop": "require approval before any refund over $100",
    "observability": "log every email, decision, and token",
    "guardrails": "never touch accounts flagged as disputed"
  }
}

AI agent architecture vs chatbots and workflow builders

To make the boundaries concrete, here is the architectural comparison in one view:

A chatbot is a request-and-response system. A workflow builder is a static DAG. An agent is a reasoning loop. They are three different architectures for three different jobs. If you are weighing the no-code end of this spectrum, our roundup of the best no-code AI agent builders breaks down the options, and if the "agentic vs AI" wording trips you up, start with agentic AI vs AI agents.

How to choose the right architecture

You do not need the most sophisticated architecture. You need the right one. Work down this checklist before you build.

• Can a single agent with tools handle this? Default to yes.
• Does the task have distinct stages or specialties? Consider multi-agent.
• Does the agent take real-world actions (payments, emails, data changes)? A control plane is non-negotiable.
• Does it touch regulated or sensitive data? Add governance and audit from day one.
• Are any actions irreversible? Require human approval on those.
• Will someone need to explain what the agent did? You need observability, not logs you bolt on later.

The moment any of the last four boxes is checked, the reasoning loop stops being the hard part. Getting the agent into production safely does. That is a design decision you make at architecture time, not a patch you add after launch. When you are ready for that step, our guide to deploying AI agents in production walks through it, and AI agent examples shows what these architectures look like in the wild.

July 26, 2026

AI Agent Orchestration: How to Coordinate Multi-Agent Systems

AI agent orchestration coordinates multiple reasoning agents toward one goal. Learn the four patterns, the architecture, and how to run a multi-agent system with no code.

The bottom line

AI agent architecture is not just the reasoning loop. It is the loop plus the control plane that makes it safe to run in production. Get the five components right, perception, reasoning, memory, tools, orchestration, and you have an agent that works in a demo. Add human-in-the-loop approvals, observability, and governance, and you have one you can actually trust with real work.

The teams whose agents survive past the prototype are the ones who architect for that second half from the start. You can build the loop yourself and spend months on the control plane, or you can start with both in place.
